Description
Description

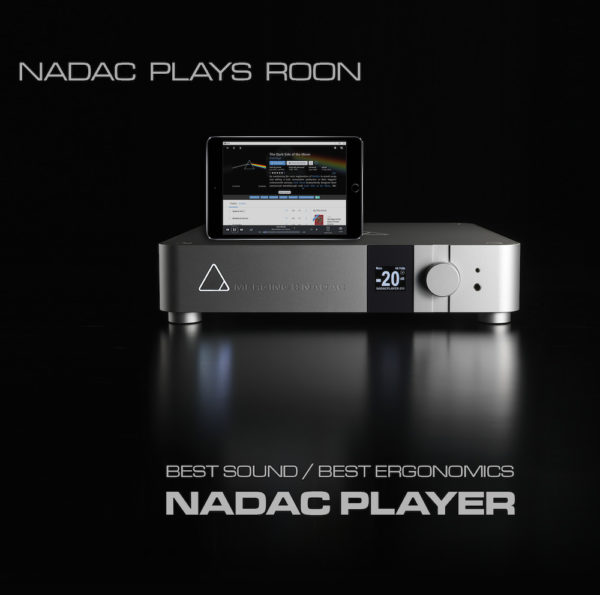

Merging+Player Technologies – (Player ROON Core)
MERGING+PLAYER restores the concept of the audiophile music server and makes your life simple again. The combination of the best music player available and the best sounding DAC allows you to access your music library from a tablet and connect directly to your amplifier or listen to headphones with the purest sound. It doesn’t get any simpler!
MERGING+NADAC,
As a concept, it challenged the convention of USB connection. RAVENNA is a far more efficient and qualitative connection standard and brings the flexibility of the network to your home audiophile installation. In the same vein and as a logical next step, MERGING+PLAYER challenges the convention of having a computer in your living room! The computer contributes nothing to the listening or the ergonomic experience of enjoying your music library. Still, hitherto, it has been the only way to run your favourite player software linking your high-resolution music files to your favourite DAC.
MERGING+PLAYER
delivers a genuinely audiophile crafted turnkey solution while still enjoying the flexibility of regular updates. New features and new services are offered by today’s software applications. Remember what mobile phones were before becoming smartphones!
Merging is the expert in DSD, multichannel and mastering-grade sound purity. The 27 Grammy® Award nominations for 2017 again demonstrate the domination of Merging equipment in all categories. Roon offers unrivalled usability with regular enhancements; Roon’s latest 1.3 version is the perfect example of how a simple update can revolutionize the pleasure of listening to your favourite music.
You can sit back and not just listen; you can discover all you want to know about the music, musicians, composer, concert dates, reviews, and more. You can control your listening level, map your channels, check the dynamic range of your track, read the liner notes, organize your playlist or even equalize your room without using anything more than your Roon application.
Additional information
Additional information
| Click for pricing | 2 channel, 8 channel |
|---|
Specifications
Outputs
Balanced Analog Output
- Connector: gold-plated male XLR
- Impedance: 40 Ohms
- Max output level: 18 dBu (6.1 Vrms)
- Multichannel dynamic range: 124 dB(A)
- Multichannel THD+N @1kHz: -113 dB (0.00022 %)
- Stereo dynamic range: 130 dB(A)
- Stereo THD+N @1kHz: -116 dB (0.00016 %)
Unbalanced Analog Output
- Connector: gold-plated RCA jacks
- Impedance: 20 Ohms
- Max output level: 8.2 dBu (2 Vrms)
- Multichannel dynamic range: 120 dB(A)
- Multichannel THD+N @1kHz: -113 dB (0.00022 %)
- Stereo dynamic range: 123 dB(A)
- Stereo THD+N @1kHz: -114 dB (0.0002 %)
Headphone
- Connector: 3.5mm jack + 6mm jack
- Impedance: 40 Ohms
- Max output level: 14.4 dBu (4.0 Vrms)
- Dynamic range: 123 dB(A)
- THD+N @1kHz: -111 dB (0.00028 %)
Inputs
AES input
- Connector: gold-plated female XLR
- Input impedance: 110 Ohms
- Sample rate: 44.1 kHz – 192 kHz
S/PDIF optical input
- Connector: Toslink
- Sample rate: 44.1 kHz – 96 kHz
S/PDIF coaxial input
- Connector: gold-plated RCA jack
- Input impedance: 75 Ohms
- Sample rate: 44.1 kHz – 96 kHz
Network input
- Connector: Neutrik EtherCon RJ45
- Bitrate: 1 Gb/s (Gigabit Ethernet only)
- Sample rate: 44.1 kHz – 384 kHz, DSD64, DSD128 and DSD256
WordClock input
- Connector: BNC
- Input impedance: 75 Ohms
- Termination: 75 Ohms, software selectable
- Sample rate: 44.1 kHz – 192 kHz
Misc
- Enclosure material: Premium machined and anodized aluminium
- Dimension: 435 W x 435 D x 95 H mm
- Weight: 11 kg
- AC voltage: 100V-240V/47-63Hz (IEC socket)
- Power consumption: < 30W
- Front panel display: OLED, 160×128 pixels, 16 bit colors
