MAGICO S5 MK2

Description

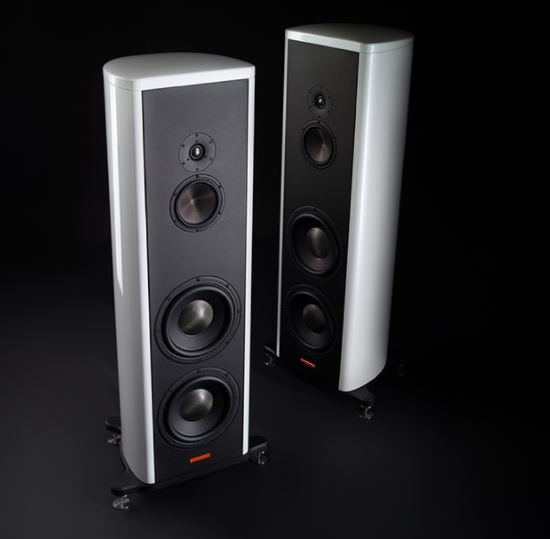

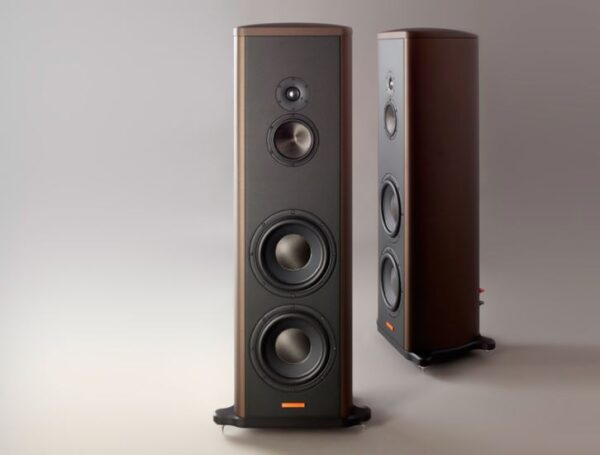

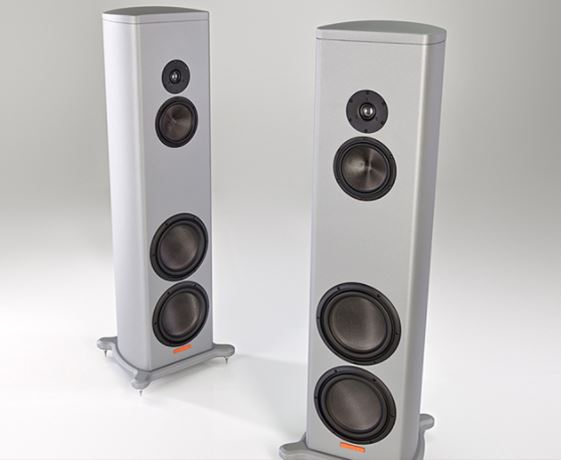

The new S5 Mk II silhouettes its predecessor however that is where any similarity ends. Significant performance enhancements are realized with the implementation of the new and advanced transducer and enclosure designs which have been distilled from the extensive engineering research devoted to the S7.

A newly designed 1-inch Magico Diamond coated Beryllium diaphragm tweeter provides smooth and extended high frequencies along with matching sensitivity, wide dispersion and increased power handling. A robust motor system and long-throw voice coil design enable lower distortion and cutoff frequencies that enhance driver integration with the midrange driver.

A higher benchmark of measured midrange performance is achieved with a newly designed 6-inch Magico driver that is formed of Multi-Wall carbon and Nanographene. The combined result of these two cutting-edge materials creates a new cone that is 20% lighter and 300% stiffer than the cone used in the S5. A purpose-built sub-enclosure made of a proprietary polymer material provides an acoustically optimized rear chamber for the midrange to operate within. The sub-enclosure concept was first introduced in the S3 and provides noticeable enhancements in midrange control and articulation.

Newly designed 10-inch Magico bass drivers offer a new motor system with extremely powerful magnets and ultra-stiff aluminum cones that are specially coated and finished with graphene dust caps. The new bass driver is capable of producing incredibly deep, powerful and complex bass frequencies with the utmost speed and accuracy.

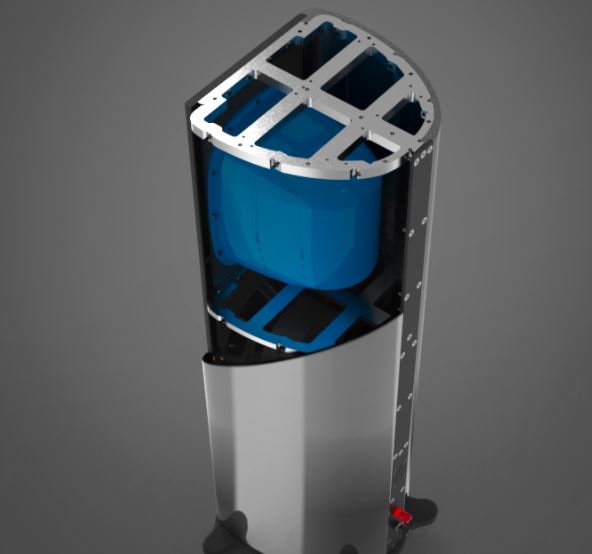

The impressive enclosure of the S5 Mk II is assembled from extruded aluminum, 1/2-inch thick and 16-inches in diameter. A massive new top plate is machined into an elegant 3D convex shape to minimize enclosure diffraction and break-up vertical standing waves. The thicker base plate incorporates a newly designed 4-point outrigger support that lowers the centre of gravity and increases overall stability resulting in lower noise floor and increased dynamics.
