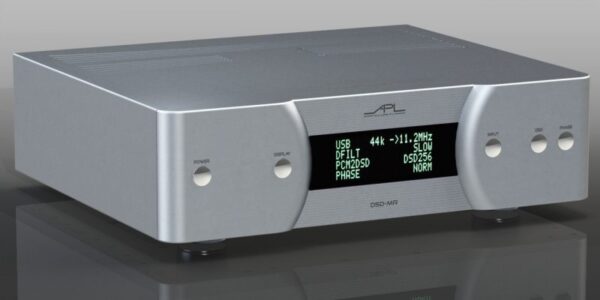

APL DSD-MR MK2 DAC

Description

The APL DSD-MR MK2 DAC is our top-line Digital to Analog converter, specifically made for the most enthusiastic audiophiles who prefer analogue-like sound, comparable to state-of-the-art vinyl and respectable reel-to-reel machines.
It is an all-hand-made boutique, designed and built with the best possible audio quality in mind, cost-no-object.
Inspired by pure analogue sound quality, the APL DSD-MR MK2 DAC pleases with a very natural sonic character that is truly unique.
From the DSD512 processing rate to the differential transformer-coupled Class-A tube output stage, the DSD-MR proves technology and refinement of the highest level.
The DSD-MR MK2 is based on a modular design, allowing cost-effective future upgradability of any internal stage.

Digital Processing
• Proprietary asynchronous USB input module accepting PCM up to 384kHz/32 bit, up to DSD128 in DoP format and DSD512 in NativeDSD format.
• Please note that both 44.1kHz and 48kHz based DSD data is accepted.
• Proprietary PCM to DSD converter module with DSD128 and DSD256 capabilities, user-selectable from the remote control.
• DSD256 and DSD512 PCM to DSD conversion possible in Zero non-oversampling digital filter mode.
• Proprietary Normal and Slow linear phase 64 bit user-selectable digital filters for PCM processing.
• Proprietary Pure DSD Digital to Analog conversion module. No off-the-shelf devices.
• Ultra-low-jitter Femto Master Clocks.
• Proprietary 10 pin RJ-45 input for connecting our DTR-MR digital transport or the DNP-SR network player.

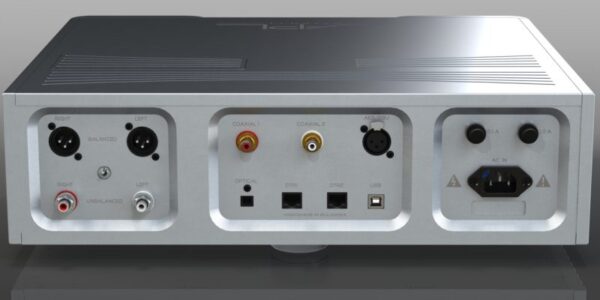

Digital Inputs
• Two RCA Coaxial digital inputs.
• AES/EBU professional standard balanced digital input.
• TOSLINK Optical digital input.
• Note! RCA, AES/EBU and Optical inputs accepting up to 192kHz/24bit PCM.
• USB input accepting PCM up to 384kHz/32bit, up to DSD128 in DoP and DSD512 in NativeDSD format. Both 44.1kHz and 48kHz based DSD.
• Note! All PCM rates from RCA, AES/EBU, Optical and USB digital inputs are converted to DSD128, DSD256 and DSD512 in Zero filter mode.
• Two DTR inputs using balanced I2S transmission protocol for connecting to DTR-MR digital transport and DNP-SR network player.

Analog Outputs
• Single Ended RCA outputs with top-line Furutech Rhodium plated RCA connectors.
• Balanced XLR outputs with top-line Furutech Rhodium plated connectors.
• Note! RCA and XLR outputs cannot be used simultaneously. Please select RCA or XLR from the switch on the back.
• Output level – 2.5V RMS at 0dBFS.
• Output impedance – approximately 100 Ohms.

Power input and fuses
• IEC power inlet made by Furutech NCF series.
• 115V or 230V / 50-60Hz, factory pre-set.
• Other power input voltages available on request.
• 0.1A fuse for standby power supply.
• 2A special ceramic fuse.
Dimensions and weight
• W450 x H120 x D380 millimetres.
• Height with feet included – 140 millimetres.
• Weight – 24.5kg unpacked.

Warranty
• 2-years warranty/6-months for the tubes with an available 3-year warranty extension, with online product registration, excluding the tubes.
Please visit https://aplhifi.com/register/
