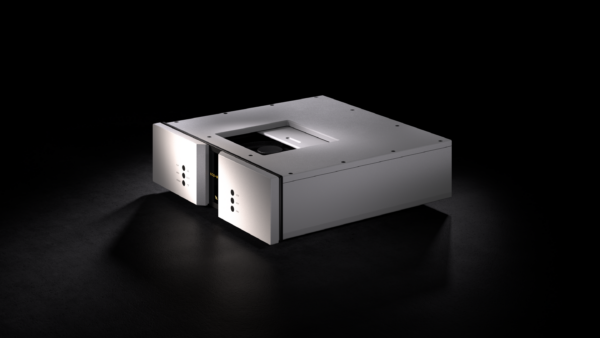

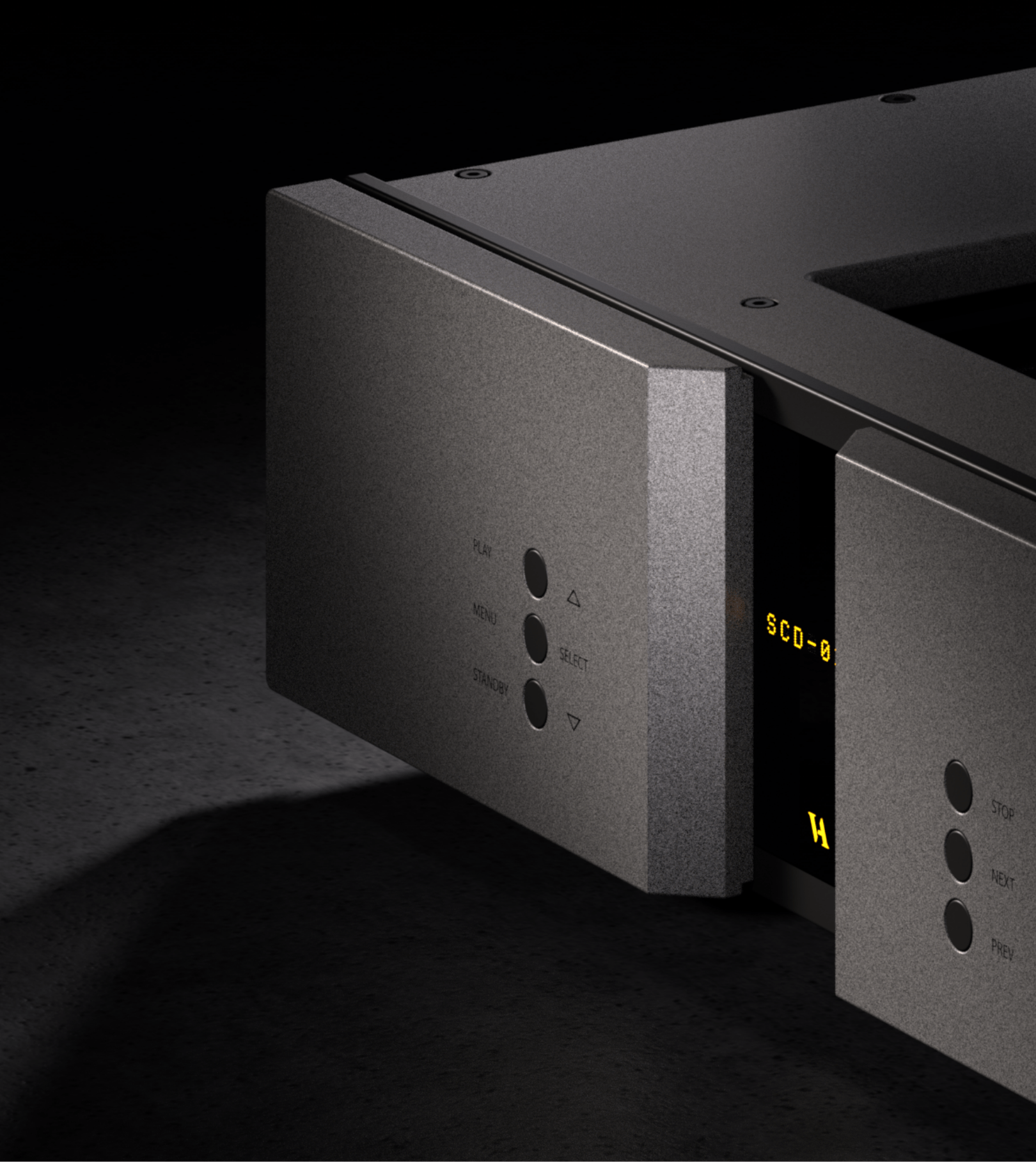

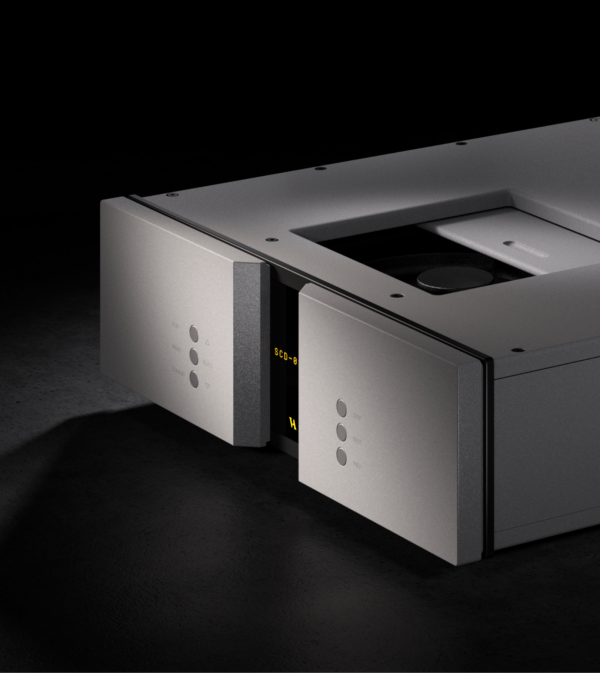

Vitus Audio SCD-025 MKII CD Player

Description

VITUS AUDIO SCD-025

INCREDIBLE ANALOGUE SOUND FROM A DIGITAL SOURCE

We created the SCD-025 Mk. II by using one of our favourite turntables and our Masterpiece MP-P201 phono stage as a reference point. Our aim was to produce the best possible analog sound from a digital source. In other words, we wanted to create a CD player that offered a more “musical” listening experience than any other CD player on the market.



After much research and development, we have created a product that surpasses expectations. The SCD-025 Mk.II is much more than just a CD player. With USB, AES/EBU, and S/PDIF inputs, it can also serve as the digital source of truth for your entire setup. serve as the digital source of truth for your entire setup.



CUSTOM TECHNOLOGY TO MEET STRICT REQUIREMENTS

We chose the Philips CD Pro 2 LF drive and stripped it back to its basic mechanical and electronic parts before rebuilding it to meet our requirements. This greatly reduces errors when reading disc information and relieves the burden on the error correction system within the drive.

We use sample rate conversion to minimise jitter, and thanks to the Engineered Q8 sample rate converter module, we achieved a sample rate of 384kHz.

The analogue stage is taken directly from our amplifiers and special attention was paid to the PSU which is split into four separate supplies. One for the drive, one for the digital stage and two (left and right) for the analogue stage. This is immensely important in lowering the noise floor and producing our famed black backgrounds.

The SCD-025 Mk.II brings truly musical performance to the digital domain.



AYON CD 35 MK2 REFERENCE PLAYER

OUTPUT XLR ANALOGUE RCA ANALOGUE
Available 1 (L+R) 1 (L+R)
Impedance 80Ω 80Ω
Frequency response +800kHz +800kHz
Signal to noise ratio >110dB @ 1kHz >110dB @ 1kHz
THD + noise <0.01% <0.01%
DRIVE
Drive mechanism Philips CD Pro 2LF (significantly modified by VA)
DIGITAL TECHNOLOGY
Master clock 24.576 MHz +/- 5 ppm
Sample rate converter Engineered Q8
DAC 2x AD1955 – mono mode
DIGITAL AUDIO INPUTS USB AES/EBU & S/PDIF
Available 1x USB B 1x XLR & 1x RCA
Impedance 75 / 110Ω
Sample rate 384kHz + DSD128 192kHz
Resolution 24bit 24bit
DIGITAL AUDIO OUTPUT
Standard 1x XLR (AES/EBU) / 1x RCA (S/PDIF)
Sample rate 192kHz
Resolution 24bit
POWER CONSUMPTION
Standby <1W
Operation 45W
