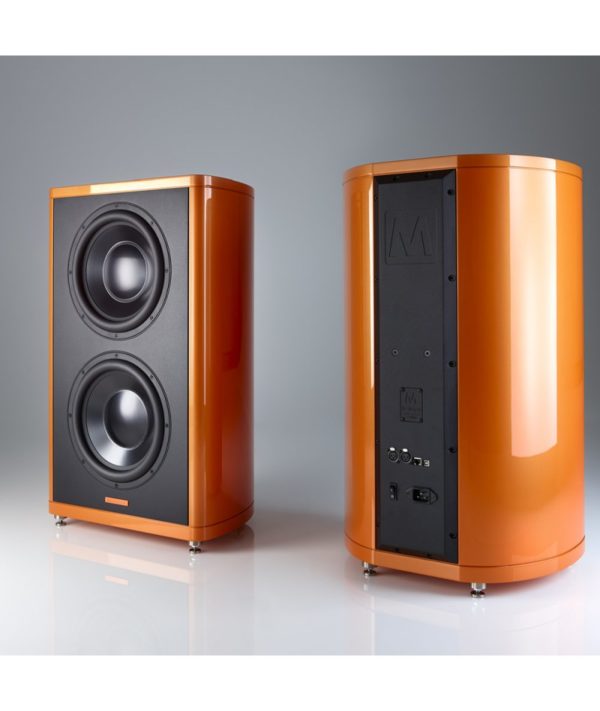

Magico S-SUB Subwoofer

Based on our award-winning S-range of loudspeakers, we proudly welcome the S-Sub into our family.

Following the success of the Q-Sub 15 /18, the new S-SUB expands the sound dimension capabilities of any Magico S-Series loudspeaker with thundering low bass frequency reinforcement. Standing vertically, the acoustic suspension enclosure of the S-SUB features curved aluminum side panels that are machined in-house from half-inch thick aluminum extrusions, which are sixteen inches in diameter. Internal bracing is carefully positioned throughout the enclosure to minimize resonances and eliminate any chance of enclosure warping from the enormous sound pressure build-up. Dual 12-inch Magico bass drivers are mounted to the front baffle vertically and provide front-firing momentum. Each driver has a mighty magnet assembly and ultra-stiff aluminum cones capable of producing deep, powerful bass frequencies with speed and accuracy. The excursion rate of the voice coil is measured at 15-mm linear movement and has clean and undistorted sound pressure levels up to 120dB with less than 1% total harmonic distortion at 20Hz.

S-SUB Amplifier

The S-SUB is powered internally by a revolutionary digital amplifier with a 3,000VA power supply (240V), a fully regulated output stage, and delivers 2,500 Watts of purpose-built power. Seamless integration with the main loudspeakers in a stereo or home theatre system is easily accomplished with the onboard digitally-controlled active crossover. The S-SUB is capable of immense air pressure change in a small or large room and provides herculean bass energy that keeps pace with the speed and integrity of the main loudspeakers. The S-SUB’s small footprint and front-firing design make placement easy along the main wall of the listening room and welcome addition to any system.

MAGICO S-SUB Specifications

Driver Complement: 2 X 12″ Bass Drivers

Sensitivity: 90DB

Impedance: 4-Ohms

Frequency Response: 15 Hz – 150 Hz

Dimensions: 32” (81.28CM) H X 15” (38.1CM) D X 19.2” (48.77CM) W

Weight: 250 LBS.
